EXPANSION VALVES

Compatible with various flow characteristics

Bidirectional flow allowed

Cv Value Range: 0.015 to 1.15

Quiet, minimal valve leakage

Bidirectional flow allowed

Cv Value Range: 0.055 to 0.32

High MOPD (10MPa)

Available in a wide range of port sizes

Cv Value Range: 0.015 to 0.49

Hot gas compatible

Bidirectional flow allowed

Cv Value Range: 0.05 to 0.45

Hot gas compatible

Bidirectional flow allowed

Cv Value Range: 0.081 to 0.96

Optimal for regulating high flow

Hot gas compatible

Cv Value:2.82

Can operate down to -50℃

Can be used together with liquid feed solenoid valves

Cv Value Range: 0.05 to 0.27

Can operate down to -70℃

Can be used together with liquid feed solenoid valves

Cv Value Range: 0.10 to 0.54

Highly durable, power-saving design

Can regulate multiple flows

Available in two-, three-, and four-way valves

Operates an electronic expansion valve to control superheat

Compatible with low GWP refrigerants

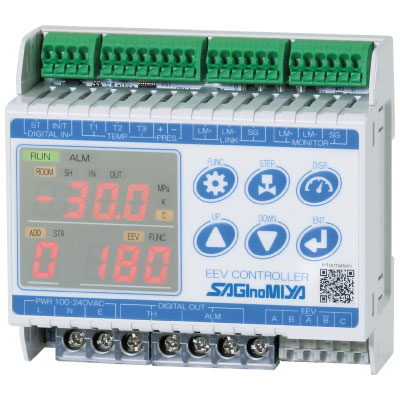

Driver for our electronic expansion valves

Up to 2 channels can be controlled synchronously

Equipped with communication function

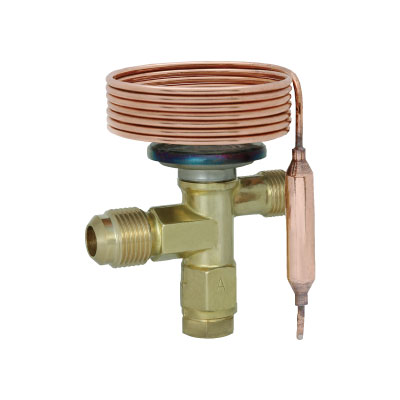

QCX: internal pressure equalization

RCX: external pressure equalization

Refrigerating capacity of 1.03 to 15.5kW (R448A)

External pressure equalization

Refrigerating capacity of 19.1 to 47.4kW (R448A)

External pressure equalization

Compatible with high pressure (3.3MPa)

Refrigerating capacity of 3.30 to 268kW (R448A)

Internal pressure equalization

Can withstand extremely low temperatures

Refrigerating capacity of 1.20 to 29.5kW (R404A)

Internal pressure equalization

Fixed Static Superheat Type

Refrigerating capacity of 1.20 to 6.01kW (R404A)

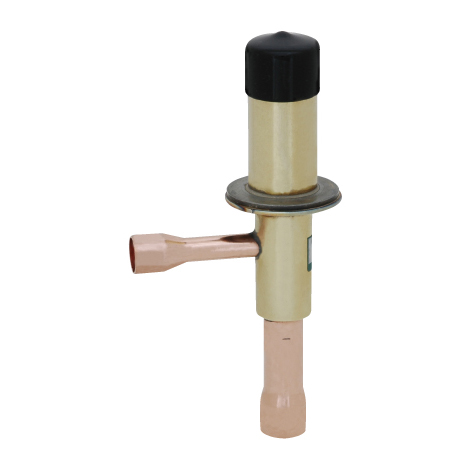

For bypass circuit configurations and constant load operations

Can be used in vacuums

Refrigerating capacity of 1.65 to 42.3kW (R448A)

For bypass circuit configurations and constant load operations

Can be used in a hot gas bypass

Refrigerating capacity of 3.30 to 268kW (R448A)

Optimal for capacity control of low-load operating equipment

Refrigerating capacity of 7.93kW (R448A)

Optimal for capacity control of low-load operating equipment

Refrigerating capacity of 22.1kW (R448A)

Internal pressure equalization

For bypass circuit configurations

Refrigerating capacity of 1.20 to 29.5kW (R404A)
